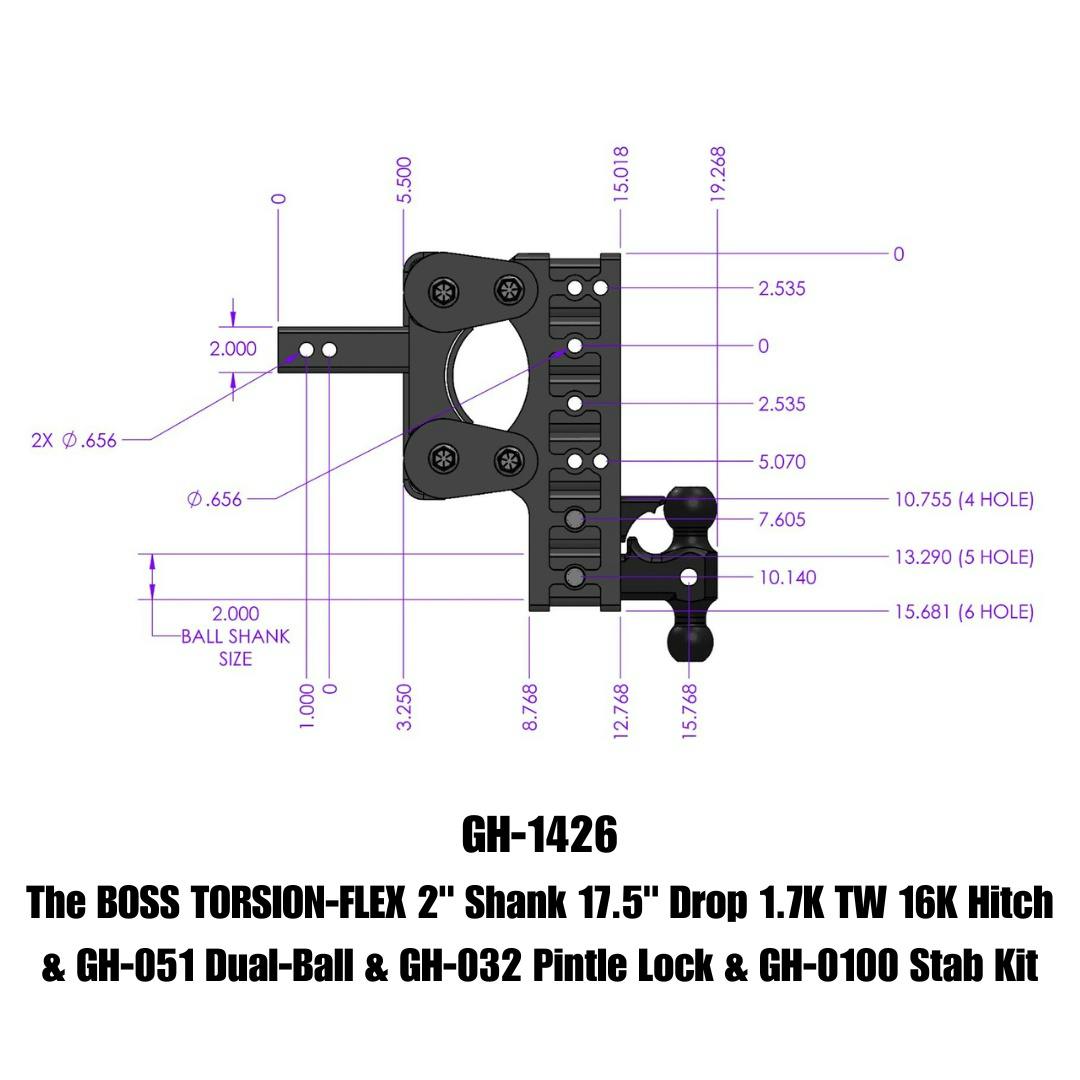

The BOSS TORSION-FLEX 2" Shank 17.5" Drop 1.7K TW 16K Hitch & GH-051 Dual-Ball & GH-032 Pintle Lock & GH-0100 Stab Kit
GEN-Y's Boss Adjustable Drop Hitches start at 10,000 LB towing capacity and go up to 32,000 LB towing capacity. The Torsion-Flex Drop Hitch is the best hitch for ultimate control and safety while towing any bumper style trailer on the market including pintle style couplings.
- TORSION-FLEX
- Adjustable w/ Stabilizer Kit
- Improved Control
- Made in USA
Application Summary:
| Year |
Make/Model |
| Fits |
2 Receiver |
| Attributes |
| Add-On |
N/A |
| Adjustable |
Yes |
| Ball Diameter (in) |
2, 2-5/16 Inch |
| Ball Diameter (mm) |
50.8, 63.5 |
| Box Number |
Ships in 2 boxes, including GH-0100-28x6x8. |
| California Proposition 65 |
WARNING: Cancer - www.P65Warnings.ca.gov |
| Class Rating |
5, 5 |
| Color |
Silver Vein, Silver Vein |
| Country of Origin (Primary) |
US |
| Drop (in) |
17.5 |
| Drop (mm) |
444.5 |
| Drop Measurement |
17.5, 17.5 |
| Drop/Raise Range |
17.5" |
| Dual Ball Included |
Yes |
| Finish |
Powder Coat |
| Full Pallet Qty |
16 |
| Full Pallet Quantity |
16 |
| Gross Towing Weight |
16000 lbs, 16000 |
| Harmonized Tariff Code (Schedule B) |
8708990000 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| Material |
Steel, Steel |
| Maximum Tongue Weight |
1,700 LBS |
| NAFTA Preference Criterion Code |
B |
| Number Of Hitch Balls Included |
2 |
| Optimal Tongue Weight Range |
1,000 - 1,700 LBS |
| Overall Length (in) |
20-1/2 Inch |
| Pintle Lock Included |
Yes |
| Qty of Balls included |
2 |
| Qty of Pins included |
2 |
| Quantity of Balls included |
2 |
| Quantity of Pins included |
2 |
| Receiver Size (in) |
2 |
| Rise (in) |
17.5 |
| SDR Required Flag |
N |
| Shank Size |
2", 2, 2 |
| Shank Size (in) |
2 |
| Shank Size (mm) |
50.8 |
| Ship Method |
LTL |
| Stabilizer Kit Included |
Yes |
| Tongue Weight |
1700, 1700 |
| Towing Capacity |
10,000 - 32,000 lbs., 16000 |
| Versa Ball Included |
Yes |
| GTIN |
00810006121117 |
