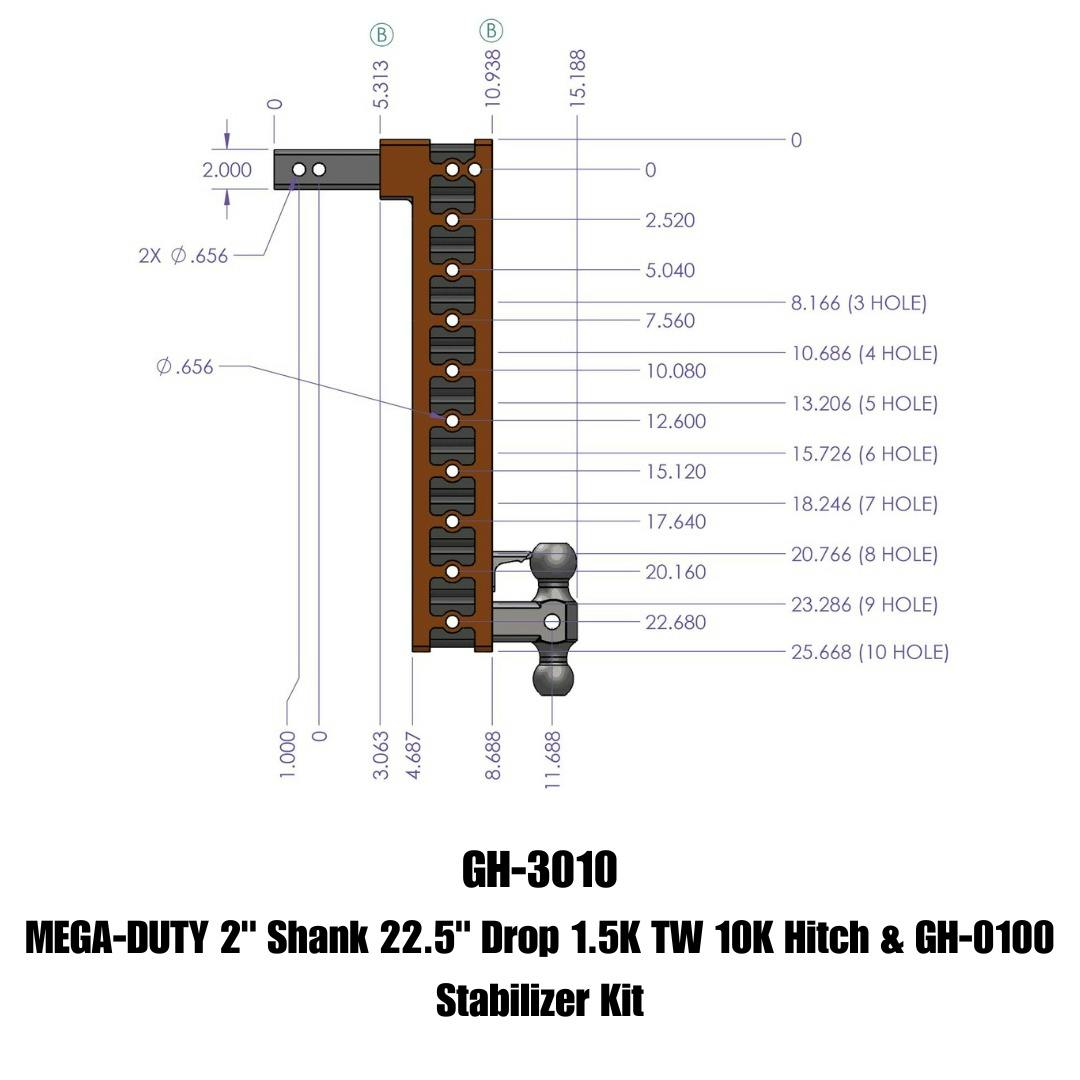

MEGA-DUTY 2" Shank 22.5" Drop 1.5K TW 10K Hitch & GH-0100 Stabilizer Kit
GEN-Y's Mega-Duty Adjustable Drop Hitches start at 10,000 LB towing capacity and go up to 32,000 LB towing capacity. There are multiple drop options as well depending on your trailer towing needs.
- Adjustable
- Stabilizer Kit
- 1.5K Tongue Weight
- 10K Towing Capacity
Application Summary:
| Year |
Make/Model |
| Fits |
2 Receiver |
| Attributes |
| Add-On |
N/A |
| Adjustable |
Yes |
| Ball Diameter (in) |
2, 2-5/16 Inch |
| Ball Diameter (mm) |
50.8, 63.5 |
| Box Number |
Ships in 2 boxes, including GH-0100-28x6x8. |
| California Proposition 65 |
WARNING: Cancer - www.P65Warnings.ca.gov |
| Class Rating |
5, 5 |
| Color |
Silver Vein, Silver Vein |
| Country of Origin (Primary) |
US |
| Drop (in) |
22.5 |
| Drop (mm) |
571.5 |
| Drop Measurement |
22.2, 22.2 |
| Drop/Raise Range |
22.5" |
| Dual Ball Included |
No |
| Finish |
Powder Coat |
| Full Pallet Qty |
18 |
| Full Pallet Quantity |
18 |
| Gross Towing Weight |
10,000 lbs, 10000 |
| Harmonized Tariff Code (Schedule B) |
8708990000 |
| Hazardous Material Code |
N |
| Life Cycle Status Code |
Available to Order |
| Material |
Steel, Steel |
| Maximum Tongue Weight |
1,500 LBS |
| NAFTA Preference Criterion Code |
B |
| Number Of Hitch Balls Included |
1 |
| Optimal Tongue Weight Range |
N/A |
| Overall Length (in) |
25-1/2 Inch |
| Pintle Lock Included |
No |
| Receiver Size (in) |
2 |
| Rise (in) |
22.5 |
| SDR Required Flag |
N |
| Shank Size |
2", 2, 2 |
| Shank Size (in) |
2 |
| Shank Size (mm) |
50.8 |
| Ship Method |
Ground |
| Stabilizer Kit Included |
Yes |
| Tongue Weight |
1500, 1500 |
| Towing Capacity |
10,000 - 32,000 lbs., 10000 |
| Versa Ball Included |
No |
| GTIN |
00810006120301 |
